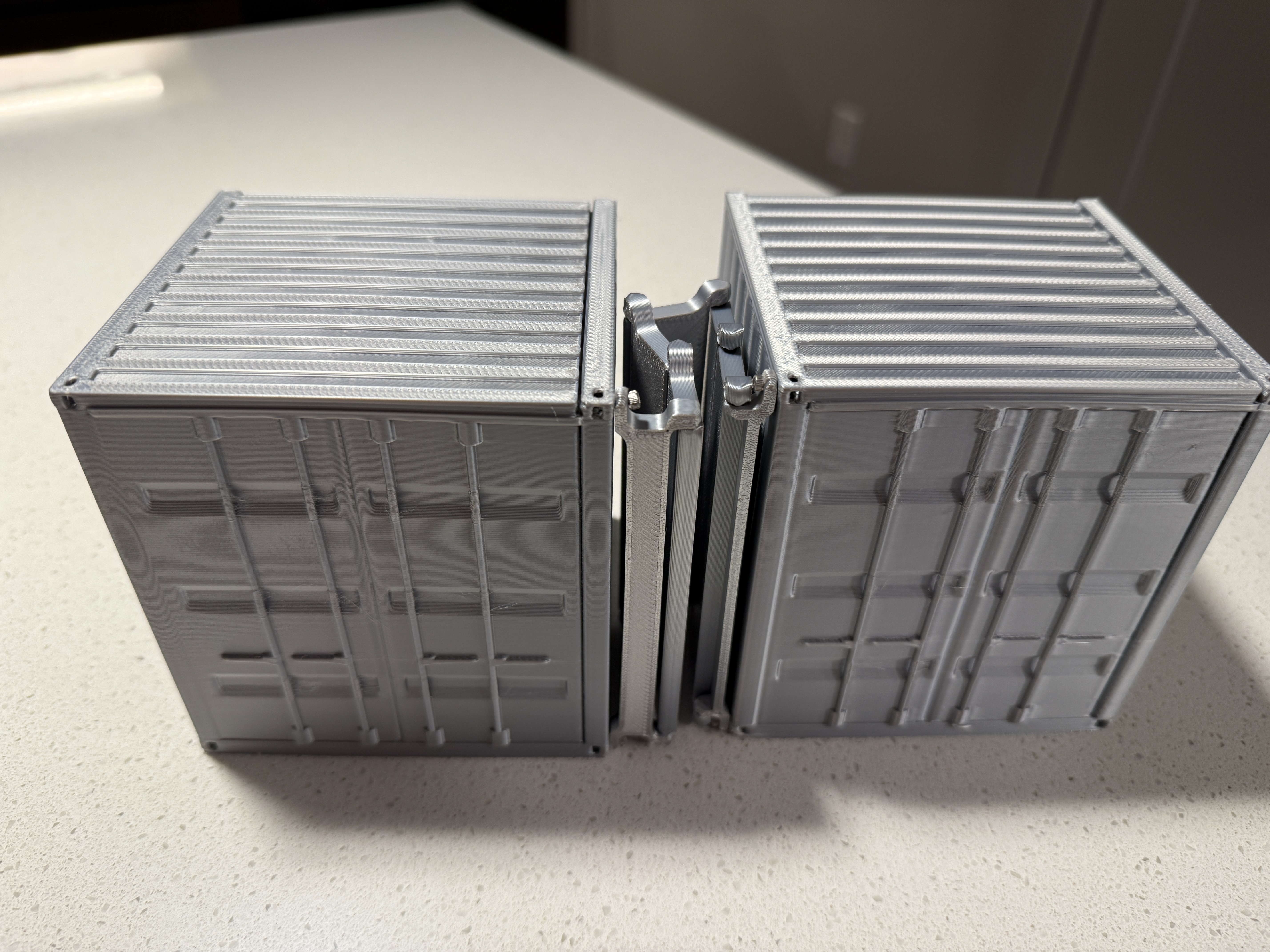

3D printed scaled prototype of the interlocking modular shipping container wall panels
April 2025

Clinic-in-a-Can Modular Walls

Collaborative project designed during Innovation Studio 1 with Clinic-in-a-Can, a local nonprofit that deploys medical clinics in shipping containers to emergency situations globally. The goal was to create a modular wall system to link multiple shipping containers together, forming a reliable, weatherproof seal around the joined perimeter. This proposed solution features interlocking panels with insulated foam interiors sandwiched between a structural wood layer and a durable steel exterior. These segments chain together to secure the open gaps between containers. A scaled 3D-printed prototype was created to demonstrate the geometric interlocking joints, showcased here alongside preliminary concept sketches and the main CAD model.

Product Design Prototyping CAD 3D Printing

Preliminary concept sketches of the linking panels

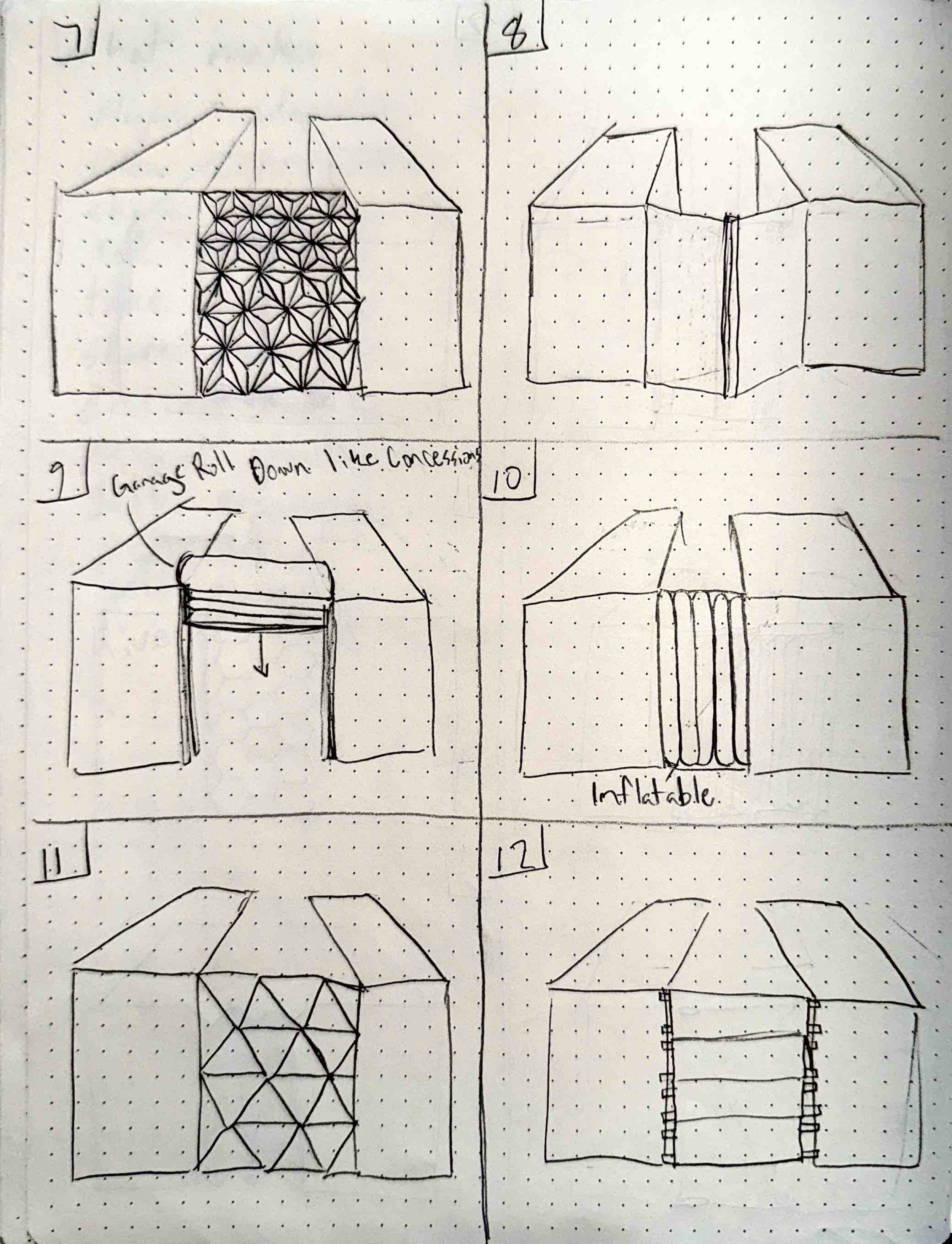

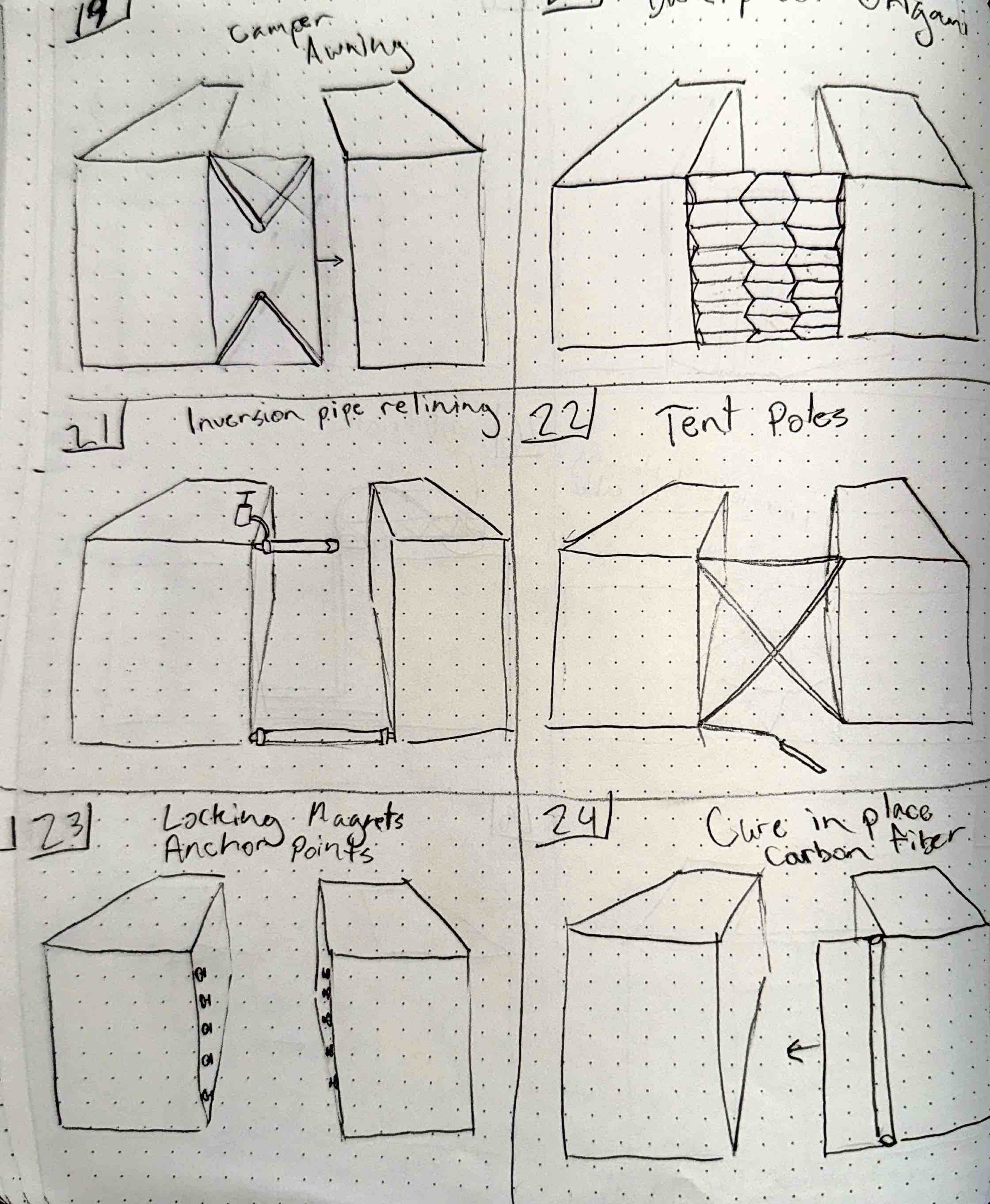

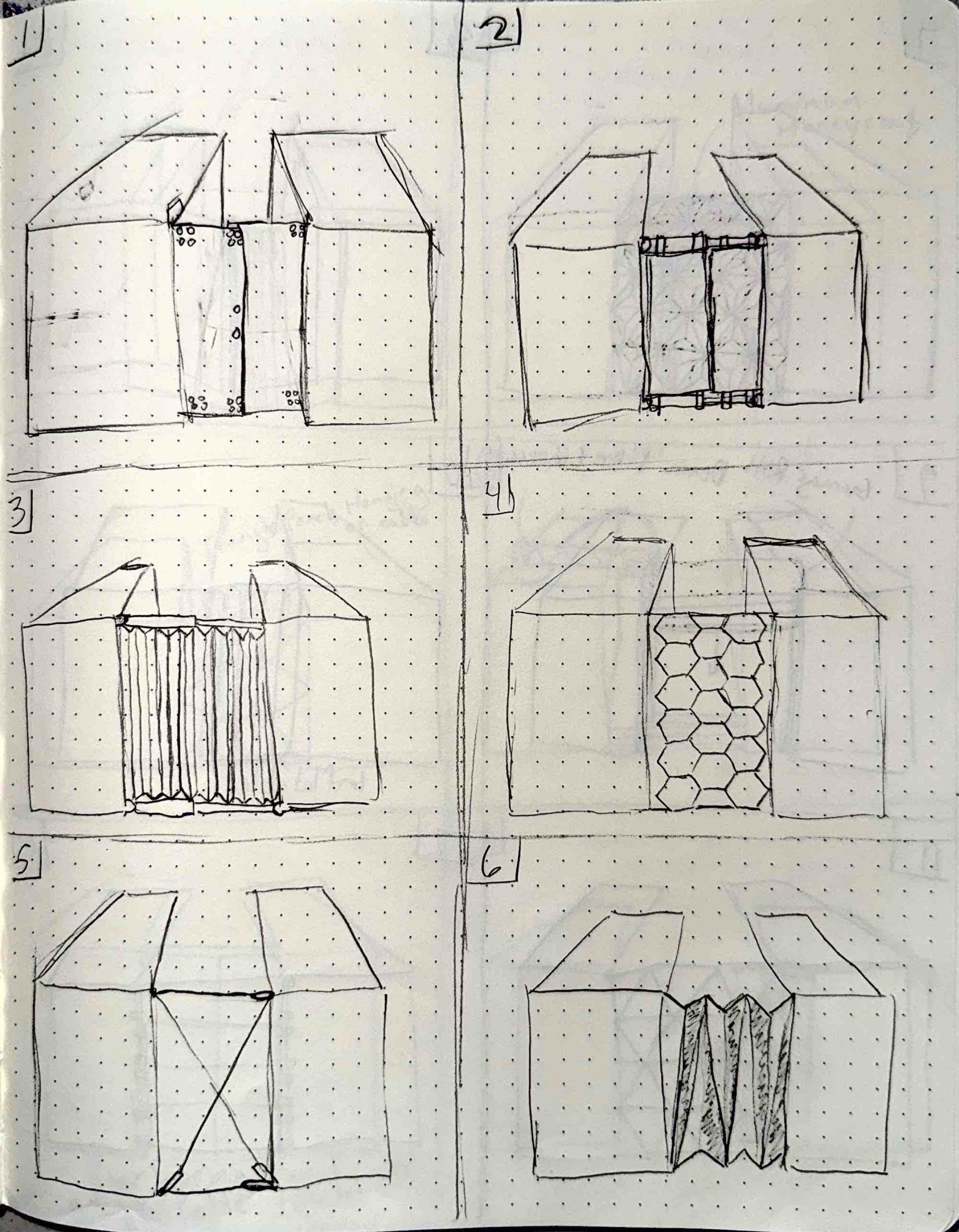

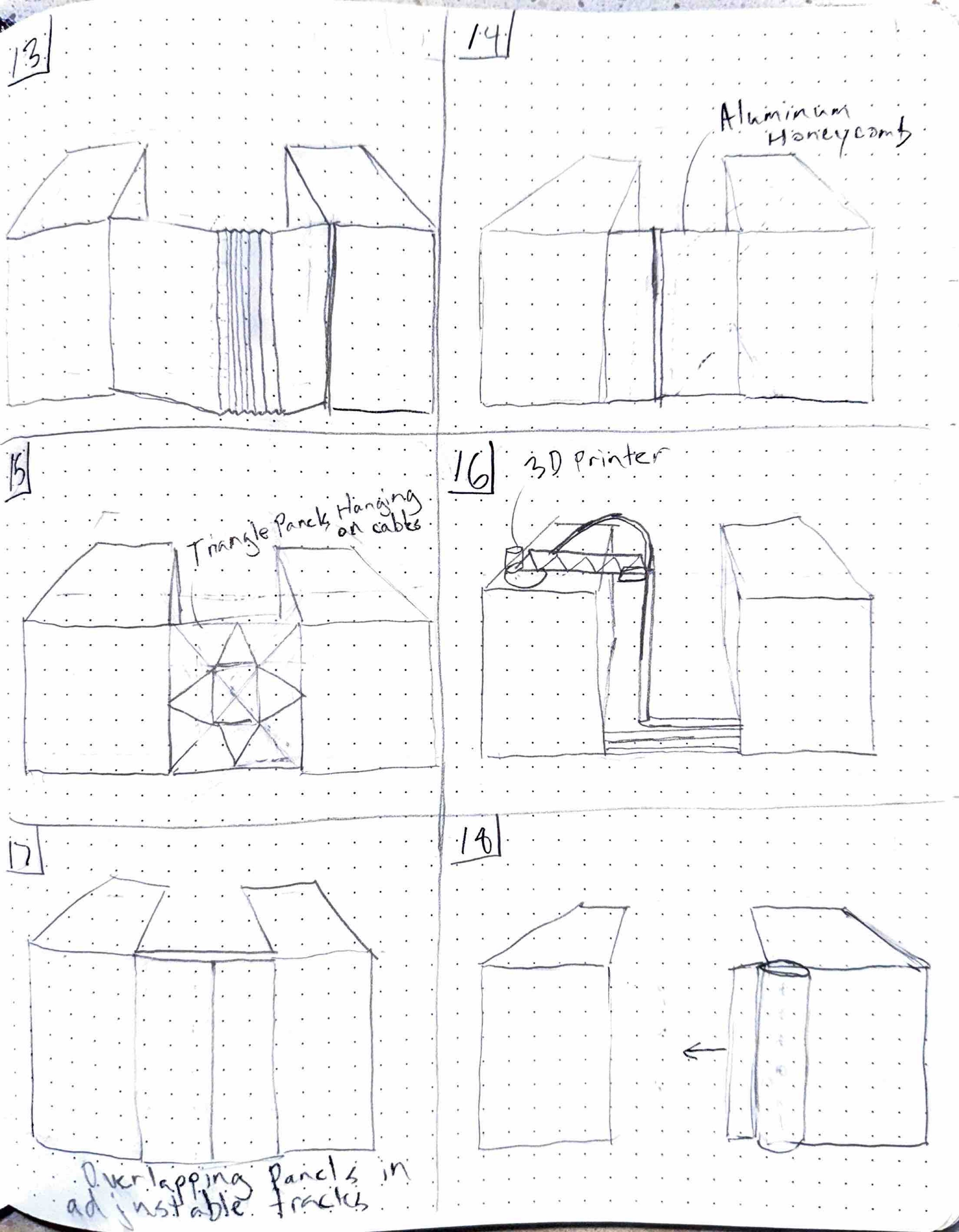

Concept sketch page 1 Concept sketch page 2 Concept sketch page 3 Concept sketch page 4

CAD model of the modular wall interlocking segment

3D printed prototype segment showing the interlocking joint profile
3D printed prototype segments forming a continuous wall structure

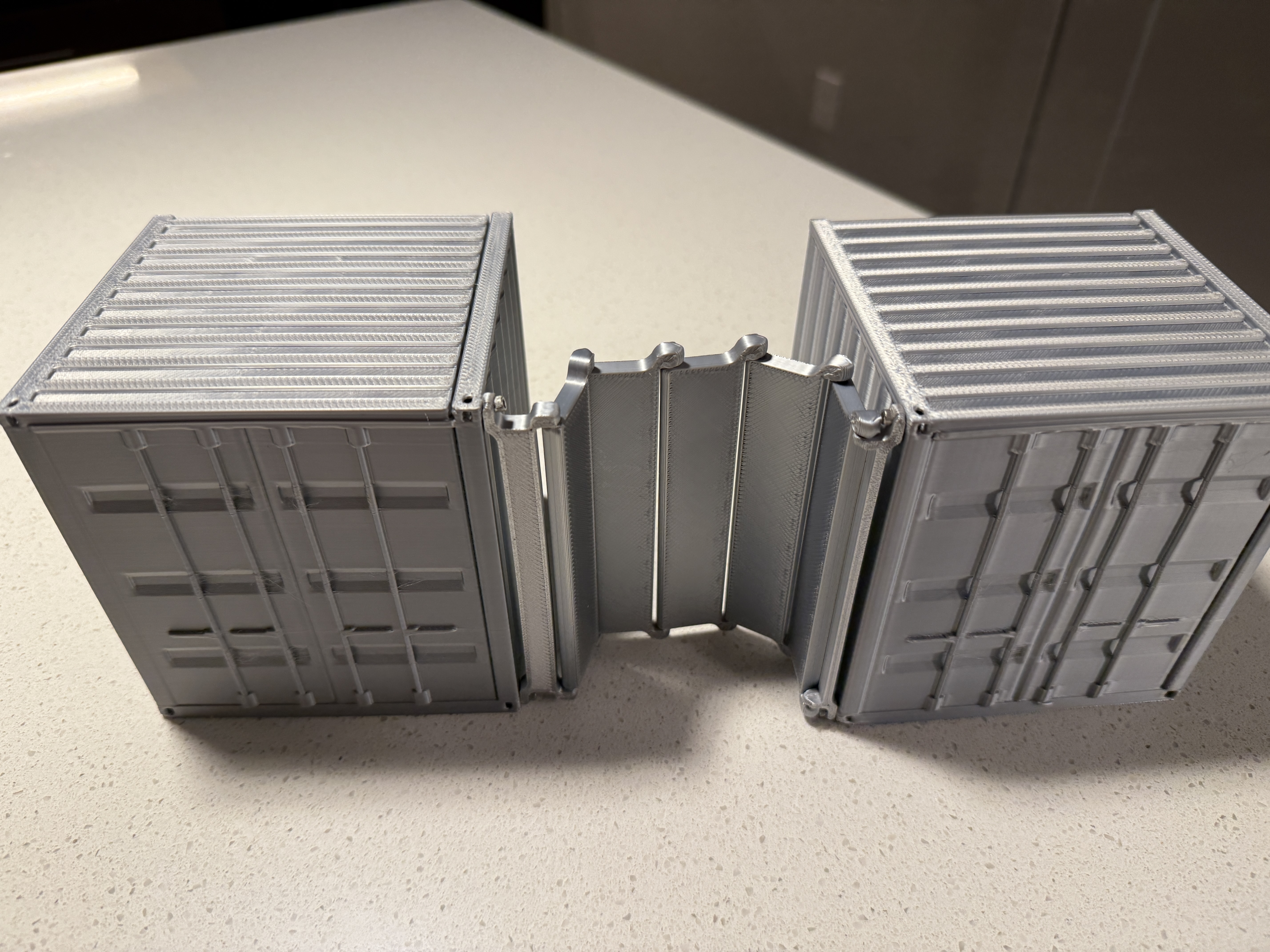

Detailed view of the joined 3D printed wall segments
